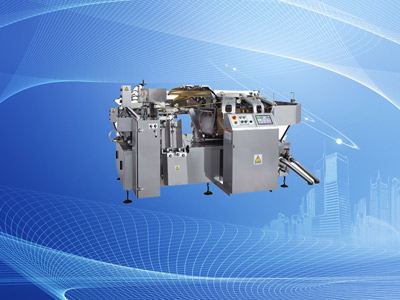

HY8ZK10-200 Automatic Rotary Vacuum Packing Mchines For bags

Work Process

Put the bag.  Open the bag.  Fill the material.  Add  liquid.   Binder.  Convert. Pump Vacuum.  Seal.  Output

Main Technical Parameters

Speed：35-60 bags/min

Bag Type: stand-up bags, handbags, zipper bags, 4-side sealing bags, 3-side sealing     bags, paper bags, compound bags, etc .

Bag Size：W: 70-220 mm    L: 80-300 mm

Filling Range：20-1000 g

Host Power：3-phase AC380c

Control Supply：DC24V

Power：4 kw (not include vacuum)

Overall Dimension：2700×2200×1600 mm（including conveyor and elevator）

Drive Power :   3 phase 5 wire system 380v 50hz

Machine Weight：2400 kg
